AmneziaWG 2 on OpenWrt

OpenWrt is an alternative operating system that can be installed on most routers. The article assumes that you already have a router with OpenWrt.

Podkop is a utility for OpenWrt that provides a convenient web interface for managing VPNs using various protocols, including AmneziaWG 2 and VLESS.

AmneziaWG 2 is a modified version of the WireGuard® protocol. Its main purpose is to bypass DPI (Deep Packet Inspection) and other VPN blocking methods that can easily detect “classic” WireGuard®.
If your ISP does not enforce strict filtering on UDP (i.e., limits UDP connections), we recommend using this protocol. In other cases, please configure the VLESS (XTLS) protocol using our guide via Podkop.

Before installation, make sure that:

OpenWrt 24.10.4 is installed on the router
• at least 30 MB of free space is available (recommended)
• you have SSH access to the router with root privileges
• you have created and downloaded the configuration file from your Personal Area

Configuring an AmneziaWG on an OpenWrt router

1. Install the required AmneziaWG packages:

sh <(wget -O - https://raw.githubusercontent.com/Slava-Shchipunov/awg-openwrt/refs/heads/master/amneziawg-install.sh)

2. When prompted:

Do you want to configure the amneziawg interface? [Y/n]

Enter:

n

Creating an AmneziaWG Interface via LuCI

3. Open the router’s web interface in a browser: http://192.168.1.1 (or specify a different router IP address) and go to: Network → Interfaces → Add new interface:

4. Specify the parameters:

• Name: VPN (or any other name of your choice)
• Protocol: AmneziaWG Protocol

5. Click Create interface.

Importing the Configuration File

6. In the interface settings, click Load Configuration and paste the contents of the .conf file or upload it entirely.
Click Import settings (if necessary).


Checking the Parameters

7. Open the configuration file in a text editor and verify that the values match:

In the "General Settings" tab:
Private Key
IP Addresses — from the [Interface] section

In the "AmneziaWG Settings" tab:
S1, S2, S3, S4
Jc, Jmin, Jmax
H1, H2, H3, H4

In the "Peers" tab:
Public Key
Allowed IPs: 0.0.0.0/0

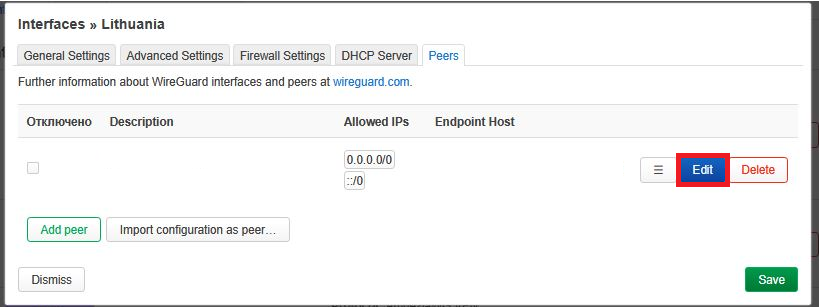

8. For the newly created Peer, click Edit:

9. Enable the Route Allowed IPs option:

10. Then click Save, followed by Save & Apply.

Assigning a Firewall Zone

11. Go to NetworkFirewall:

12. Create a new zone by filling in the parameters:

Input: reject
Output: accept
Forward: accept
Masquerading: ✅ enabled
MSS clamping: ✅ enabled
In Covered networks, specify the interface created in step 6
In Allow forward from source zones, select the lan zone

13. Click Save, then Save & Apply.

14. Click Edit on the lan zone:

15. In the Allow forward to destination zones field, add the VPN zone you created:

16. Click Save, then Save & Apply.
